Odometer
115,087
Maintenance Date
07/15/2025

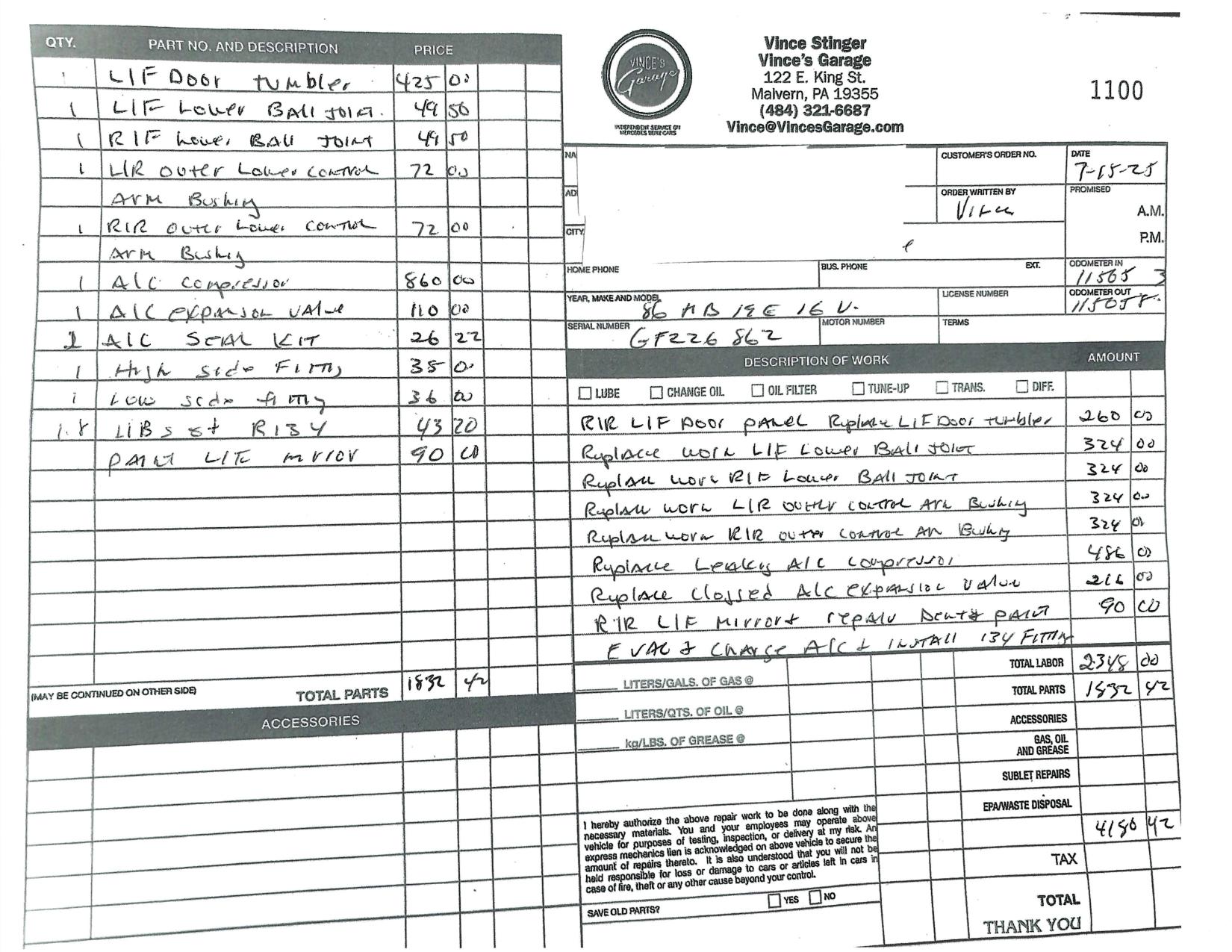

Maintenance Summary
- Replaced left front (LF) door tumbler and removed LF door panel
- Replaced both front lower ball joints:
- LF lower ball joint
- RF lower ball joint
- Replaced both outer lower control arm bushings:
- LF outer lower control arm bushing
- RF outer lower control arm bushing
- Air conditioning (A/C) system repairs:
- Replaced leaking A/C compressor
- Replaced A/C expansion valve
- Installed A/C seal kit
- Replaced high-side and low-side fittings
- Installed new R134a fittings (conversion)
- Evacuated and recharged A/C system
- Passenger-side mirror:
- Replaced power mirror assembly

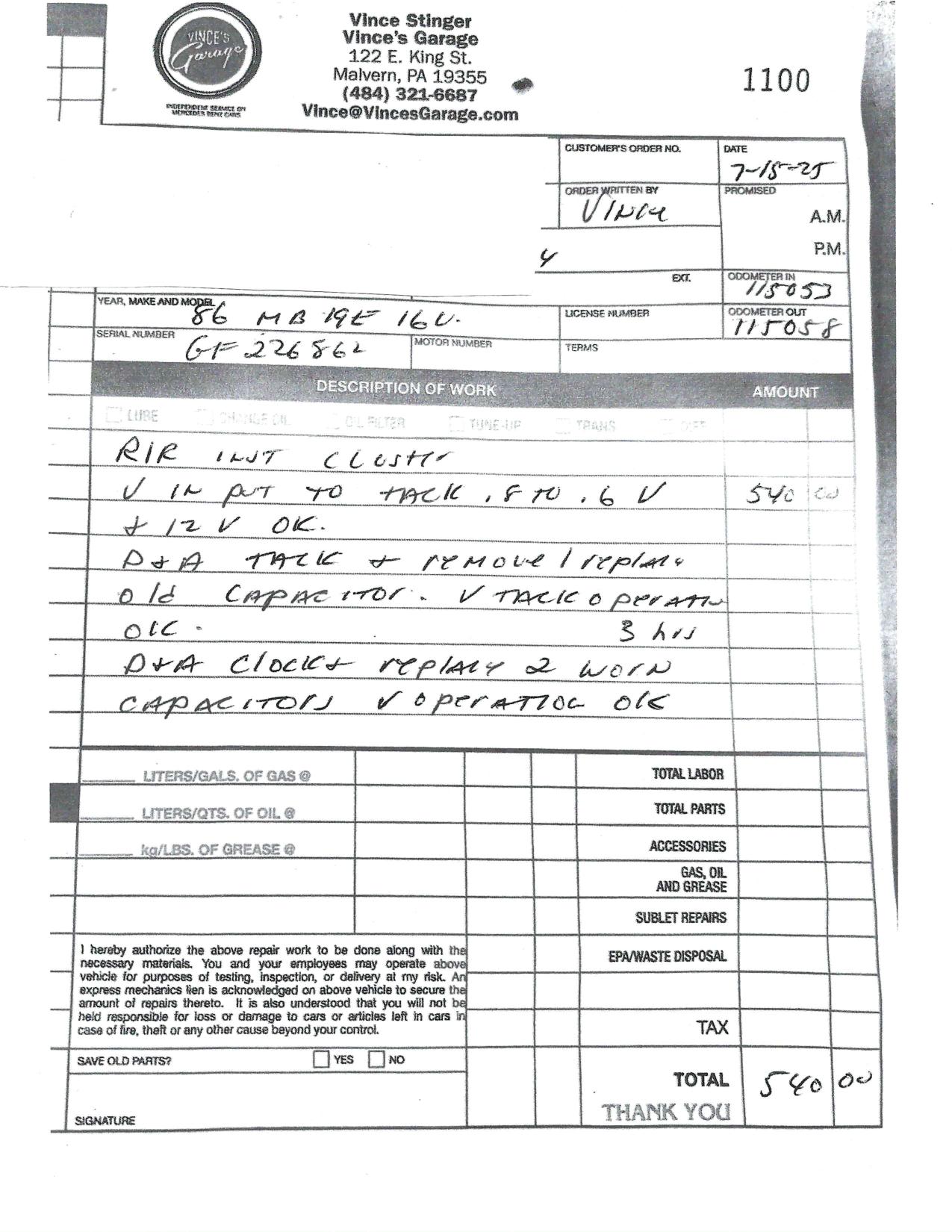

- Cluster repair
- Removed and reinstalled instrument cluster
- Diagnosed tachometer voltage (found 6V to tach, 12V power OK)
- Removed and replaced failed tachometer capacitor
- Confirmed tachometer operation after repair
- Repaired/serviced clock (clock capacitor replaced)
- Verified all cluster functions after reassembly
Maintenance Images
